Simple, accurate and affordable surgical navigation system for spine, cranial and ENT procedures.

Smart Solution for Enhanced Productivity

Click here for a 360º view experience

Click here for a 360º view experience

Key Features

Navient is an innovative image-guided navigation system, utilizing the latest technologies in the field and bringing simplicity, accuracy and affordability to the surgical navigation system.

  • For Spine, Cranial, Biopsy and ENT procedures

  • Sleek, compact and portable cart

  • Large touch screen for natural interaction

  • Powerful and intuitive software features

  • Pre-calibrated navigation probes

  • Fast registration and precise navigation

  • Affordable and no consumables

Streamlined User Interface

Navient’s software user interface is intuitive and simple to follow. Once data is loaded, Navient software operation proceeds sequentially through 6 stages as follows:

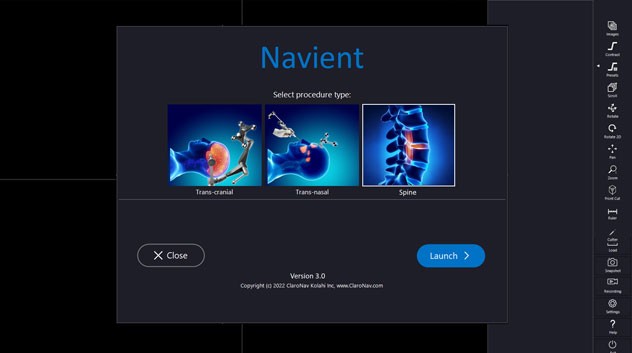

Procedures

Supports ENT, Cranial and Spine

procedures

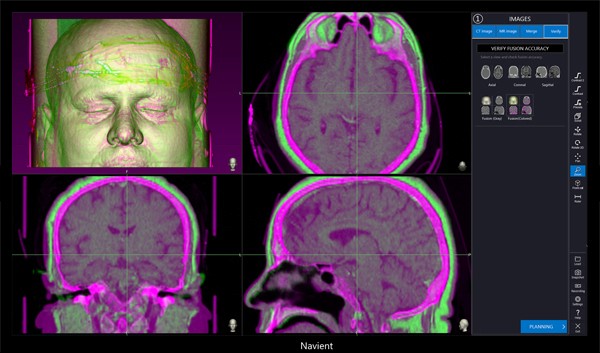

Images

Load images from CD/DVD/USB or PACS, Image fusion

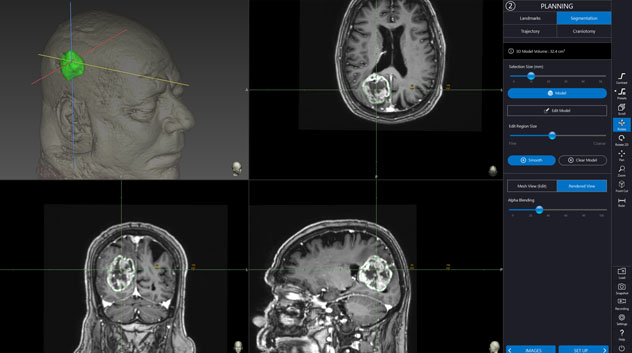

Planning

3D Modeling, Biopsy trajectory planning, Virtual craniotomy

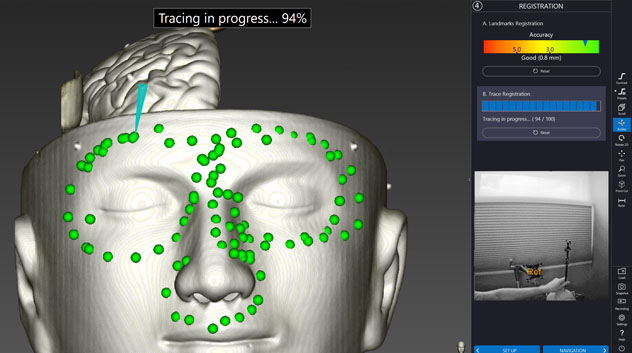

Registration

Landmarks and Trace based registration

Navigation - Spine

Optimized Navigation layout for Spine procedure

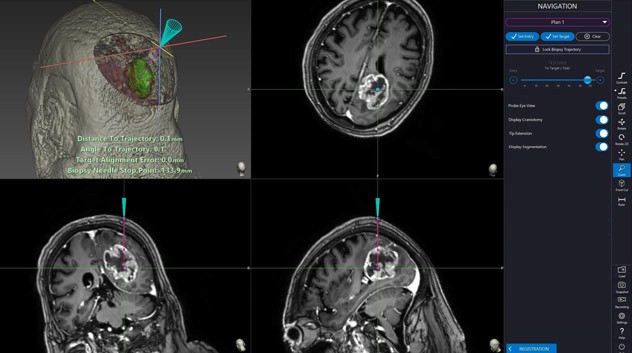

Navigation - Cranial

Optimized Navigation layout for Cranial procedure

Reusable Instruments

Reusable Instruments

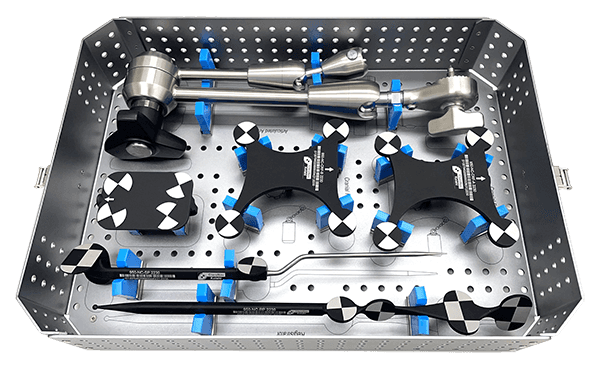

Cranial Instruments

• Articulated arm

• Two Cranial Reference Frames

• Straight probe

• Registration probe

• Tip Calibrator

• Microscope probe

• Sterilization tray

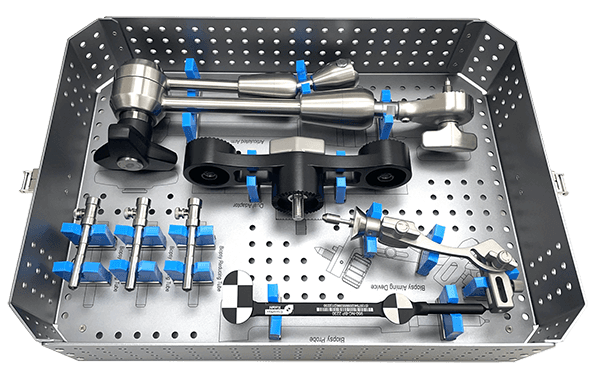

Biopsy Instruments

• Articulated arm

• Dual adaptor

• Biopsy aiming device

• Biopsy probe

• Reducing tube 2.2mm

• Sterilization tray

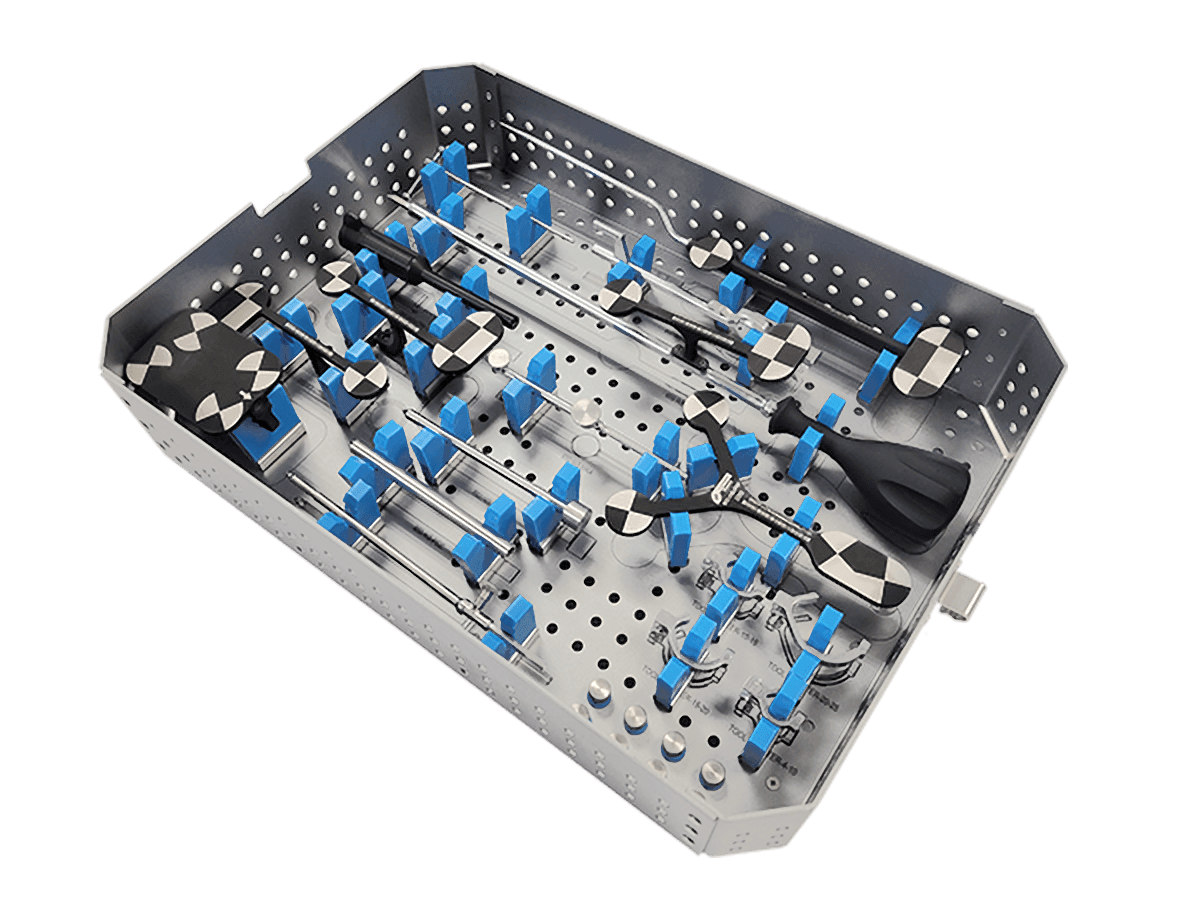

Spine Instruments

• Open Spinous clamp

• Percutaneous surgery unit

• Clamp tool handle

• Universal Trackers

• Patient Reference Frame

• Mini Articulated Arm

• Navigated Awl

• Registration Probe

• Tip Calibrator

• C-Clamps

• Sterilization tray

ENT Instruments

• Bayonet probe

• Registration probe

• Maxillary seeker

• Frontal seeker

• Universal tracker

• Patient tracker

• Tip calibrator

• C-Clamps

• Sterilization tray

Sleek, Compact and Portable

Sleek, Compact and Portable

General Specifications

General Specifications

Tracking System

• Infrared optical tracking system

• 0.2mm calibration accuracy

• Live video stream

• Instrument tip accuracy verification

• Permanent markers

• Reusable and sterilizable instruments

• Foldable tracker arm with variable height

All-in-One Computer

• 27” WQHD ultra bright touchscreen monitor

• Ultra-thin Bezel, glass front and stainless

steel back

• Light weight, thin and easily detachable

• Adjustable mount Tilt/Swivel/Rotation

• Intel® Core™ i7 quad core processor

• 32GB 3200MHz DDR4 RAM

• 1TB NVMe PCIe M.2 SSD Drive

• Nvidia GeForce RTX 3070 graphics

Software

• For Cranial, Spine and ENT procedures

• Loads DICOM images from DVD, USB, PACS

• Image fusion

• Automatic segmentation and 3D modeling

• Virtual craniotomy

• Biopsy trajectory planning and navigation

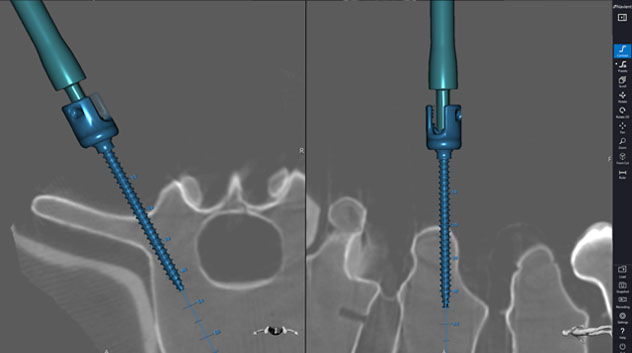

• Pre-op and Intra-op pedicle screw planning

• Landmark and Trace registration

• Automatic registration using intra-op CT and C-arm

• Anatomical, trajectory and probe eye views

• Video documentation of surgical operation

Cart

• Light weight: 30kg

• Small footprint: 40 (W) x 50 (D) x 135 (H) cm

(when extended: 190 (H) cm)

• Omni directional wheels with brakes

• 100V – 240V, 50/60Hz, 2.2A

Support Program

Installation & Training Program
On-site installation and training is included in your purchase of Navient navigation system. You will be trained until you feel comfortable operating the Navient system

Warranty
2 years warranty is included in your purchase of a Navient system. Extended warranty is available for the system lifetime.

On-line Support
Navient comes with a remote online assistance program. Our technical support staff can log into your Navient system to perform diagnostic and troubleshooting operations.

Software Update
Your Navient software will be automatically updated via our online support program.

Hardware Repair
Our technical support will help you with both on-site and off-site repair.

Preventive Maintenance
Regular on-site and off-site maintenance operations are performed to monitor the performance of your Navient system.
