Navient ClaroNav

View Brochure

Simple, accurate and affordable surgical navigation system for inpatient and outpatient ENT and transnasal interventions.

Smart Solution for Enhanced Productivity

View Brochure

Simple, accurate and affordable surgical navigation system for inpatient and outpatient ENT and transnasal interventions.

Smart Solution for Enhanced Productivity

View Brochure

Simple, accurate and affordable surgical navigation system for inpatient and outpatient ENT and transnasal interventions.

Smart Solution for Enhanced Productivity

Quick and easy set up

Navient is designed for convenient routine use. There are no cables to connect, no spherical markers to mount, no head straps to wrap, no field generator to place, and no consumables to order.

Fast Registration

Navient uses an innovative registration technology which is accurate, reliable, and fast. The process takes less than a minute to complete.

Optical System

Navient uses an innovative registration technology which is accurate, reliable, and fast. The process takes less than a minute to complete.

Universal Tracker

attached on a shaver

Navient peel & stick Patient Tracker

Universal Tracker

attached on a shaver

Navient peel & stick Patient Tracker

Universal Tracker

attached on a shaver

Navient peel & stick Patient Tracker

• For inpatient and outpatient interventions

• Seamless integration with office practices

• Increase your efficiency and reduce stress

• Operate safer and lower harm to patient

• Affordable and no consumables

• Powerful and intuitive software features

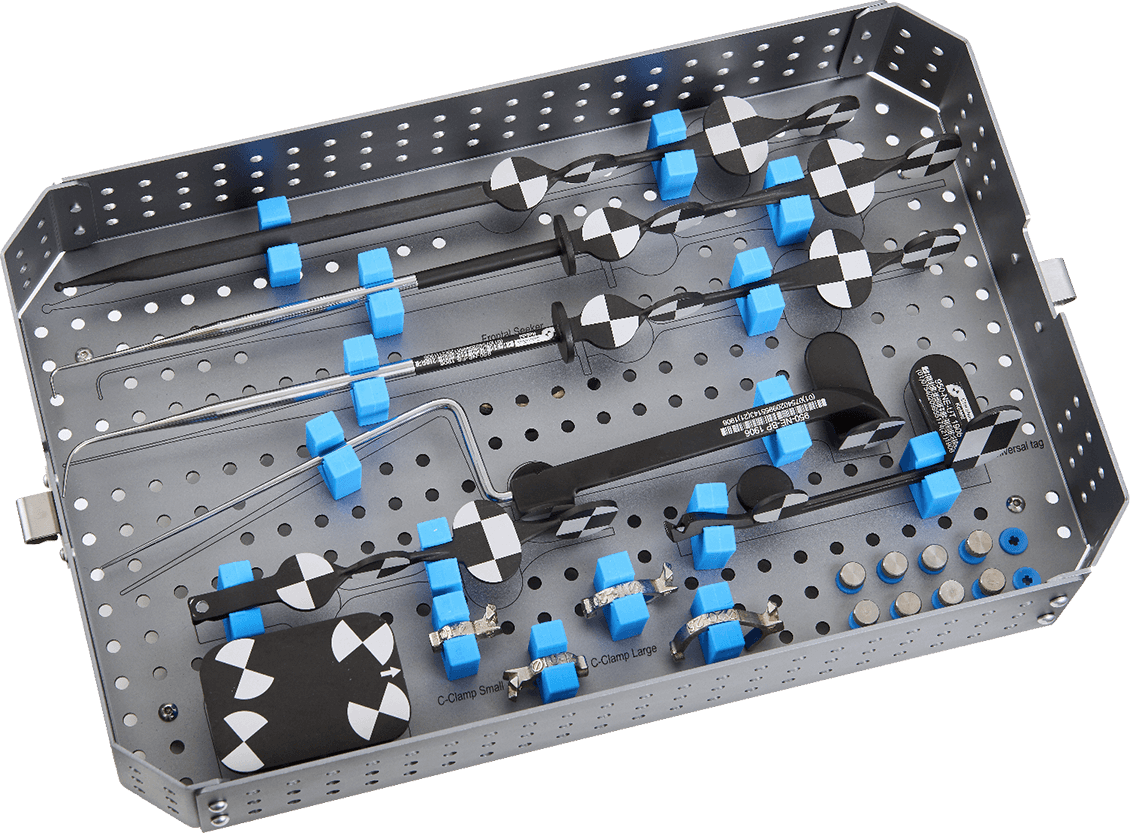

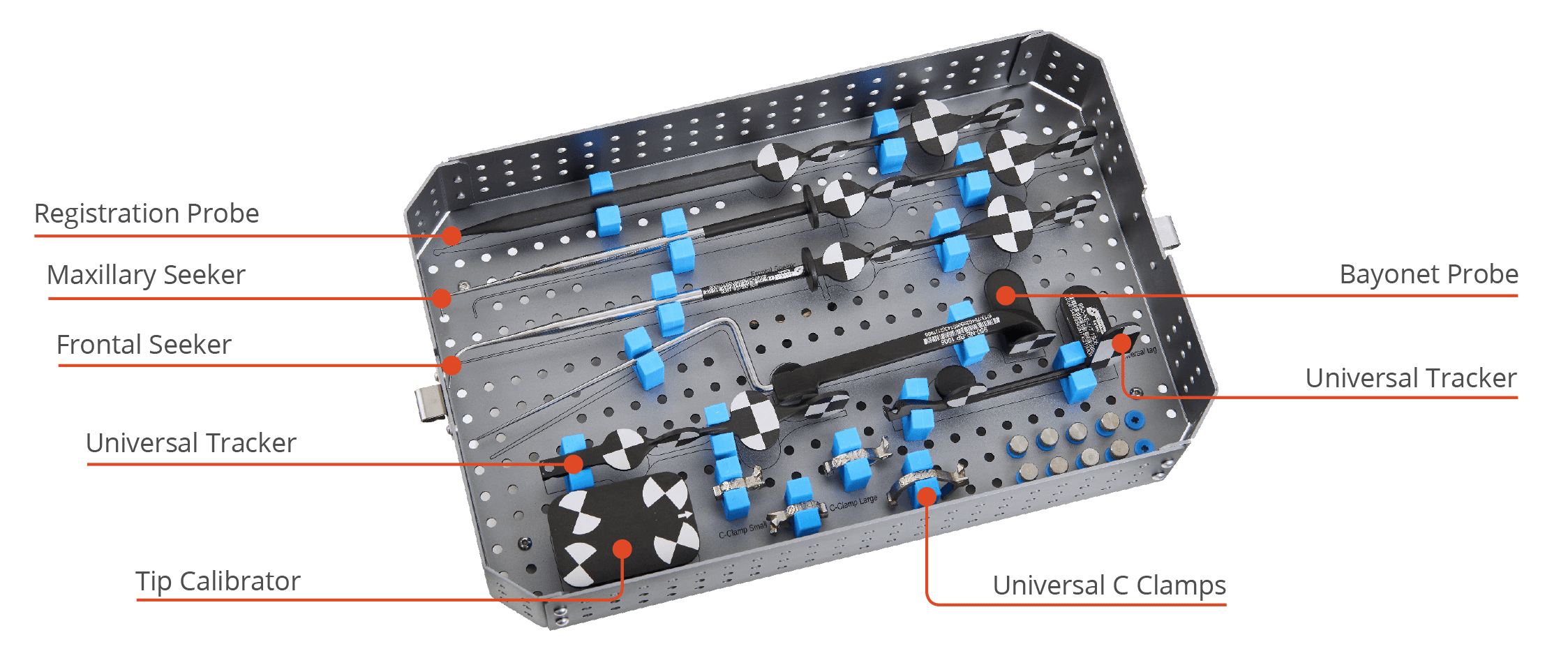

Reusable Instruments

Ergonomic Instruments

• Pre-calibrated navigation instruments equipped with permanent markers

• Universal Tracker adaptor clamps easily to any suction tube, debrider or balloon dilation system

• Calibrator instrument calibrates the tips of instruments in a few seconds

• Verify instrument tip accuracy in the zoom window

• Steam sterilizable navigation instruments

• Reusable peel & stick patient tracker

• No consumables

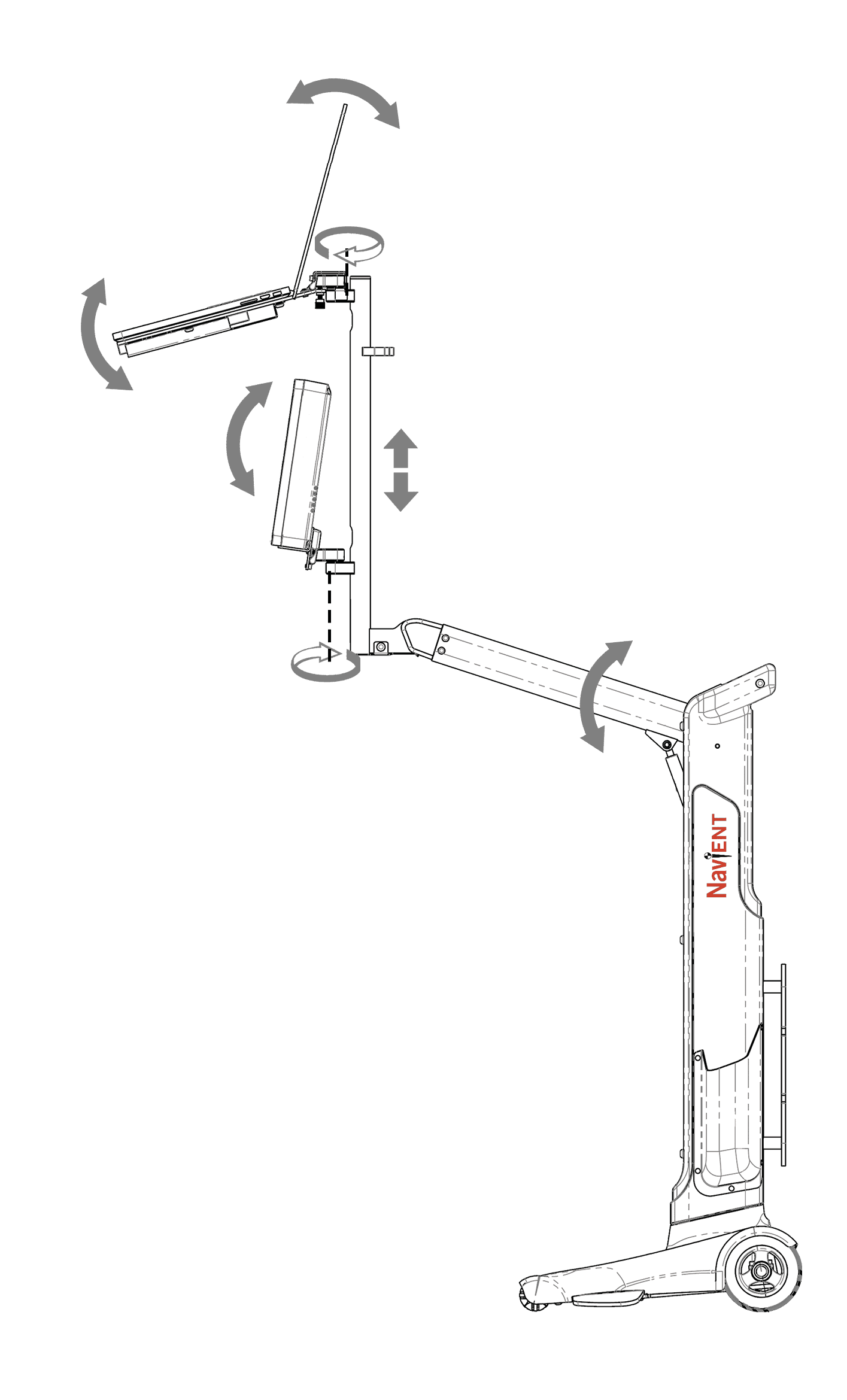

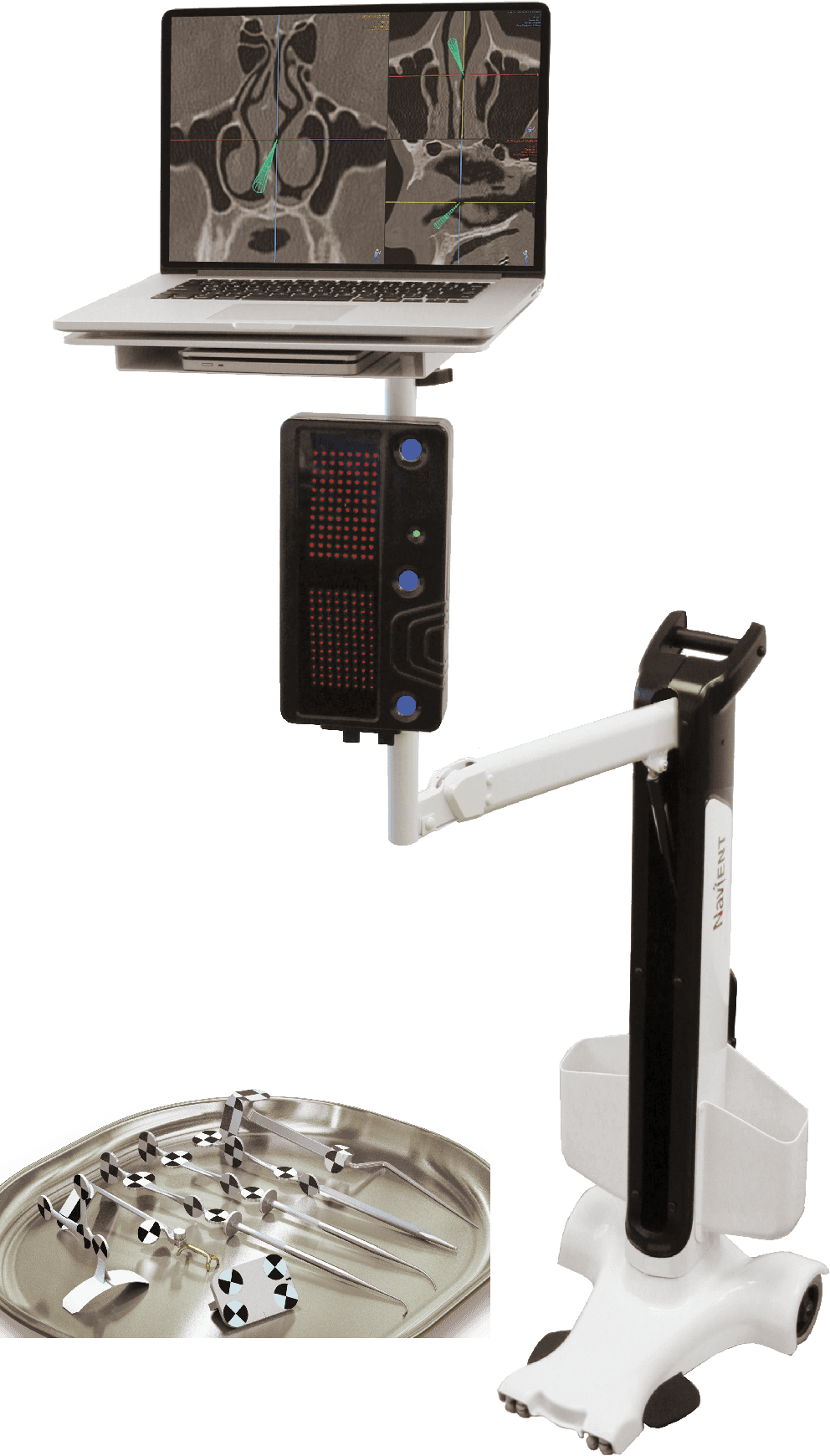

Sleek, Compact and Portable

Streamlined User Interface

Navient’s software user interface is intuitive and simple to follow. Once data is loaded, Navient software operation proceeds sequentially through 6 stages as follows:

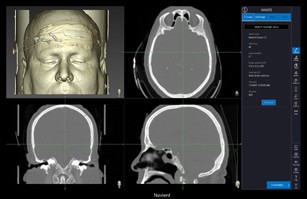

Images

Load CT or MRI images from USB, DVD or PACS

Image Fusion

Merge CT and MRI images (Optional)

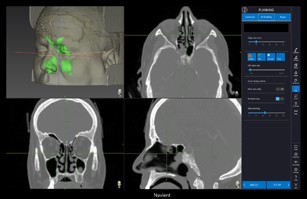

Planning

Build 3D model of sinus (Optional)

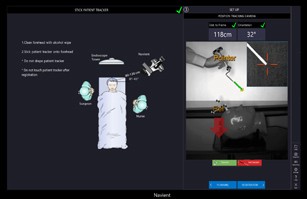

Set Up

Position the tracker, calibrate new instruments and check their tip accuracy

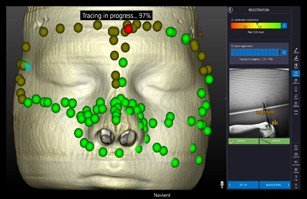

Registration

Landmark based and trace based

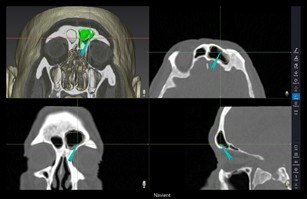

Navigation

Navigate in 3D & 2D views, Smart 3D front clip, display 3D sinus model

General Specifications

Tracking System

• Infrared optical tracking system

• Live video stream

• 16 frames per second

• 0.2mm calibration accuracy

• Permanent markers

• Reusable and sterilizable instruments

Computer

• 16 inch LED-backlit display

• Intel core i7 quad core processor

• 16GB DDR4 RAM

• 512GB Solid State Drive

• Additional monitor support

Software

• Import Dicom images from DVD, USB and PACS

• Fast and accurate image fusion

• 3D sinus modeling and navigation

• Trace and Landmarks registration

• Smart 3D automatic front clip

• Easy manipulation of 2D and 3D images

• Video documentation of surgical operation

• Warnings issued if line of sight interrupted

• Gesture based user interface control

• Smart Zoom magnifies navigation area

• Instrument tip accuracy verification

• Remote support and software updateeye views

• Video documentation of surgical operation

Cart

• Foldable and Portable

• Lightweight 26kg

• Compact size 40 (W) x 45 (D) x 100 (H) cm (when extended: 160 (H) cm)

• Omni directional front wheels

• 120V; 220-240V, 1A, 50/60Hz AC power supply

Support Program

Installation & Training Program
On-site installation and training is included in your purchase of Navient navigation system. You will be trained until you feel comfortable operating the Navient system

Warranty
2 years warranty is included in your purchase of a Navient system. Extended warranty is available for the system lifetime.

On-line Support
Navient comes with a remote online assistance program. Our technical support staff can log into your Navient system to perform diagnostic and troubleshooting operations.

Software Update
Your Navient software will be automatically updated via our online support program.

Hardware Repair
Our technical support will help you with both on-site and off-site repair.

Preventive Maintenance
Regular on-site and off-site maintenance operations are performed to monitor the performance of your Navient system.

Support Program

Installation & Training Program
On-site installation and training is included in your purchase of Navient navigation system. You will be trained until you feel comfortable operating the Navient system

Warranty
2 years warranty is included in your purchase of a Navient system. Extended warranty is available for the system lifetime.

On-line Support
Navient comes with a remote online assistance program. Our technical support staff can log into your Navient system to perform diagnostic and troubleshooting operations.

Software Update
Your Navient software will be automatically updated via our online support program.

Hardware Repair
Our technical support will help you with both on-site and off-site repair.

Preventive Maintenance
Regular on-site and off-site maintenance operations are performed to monitor the performance of your Navient system.
